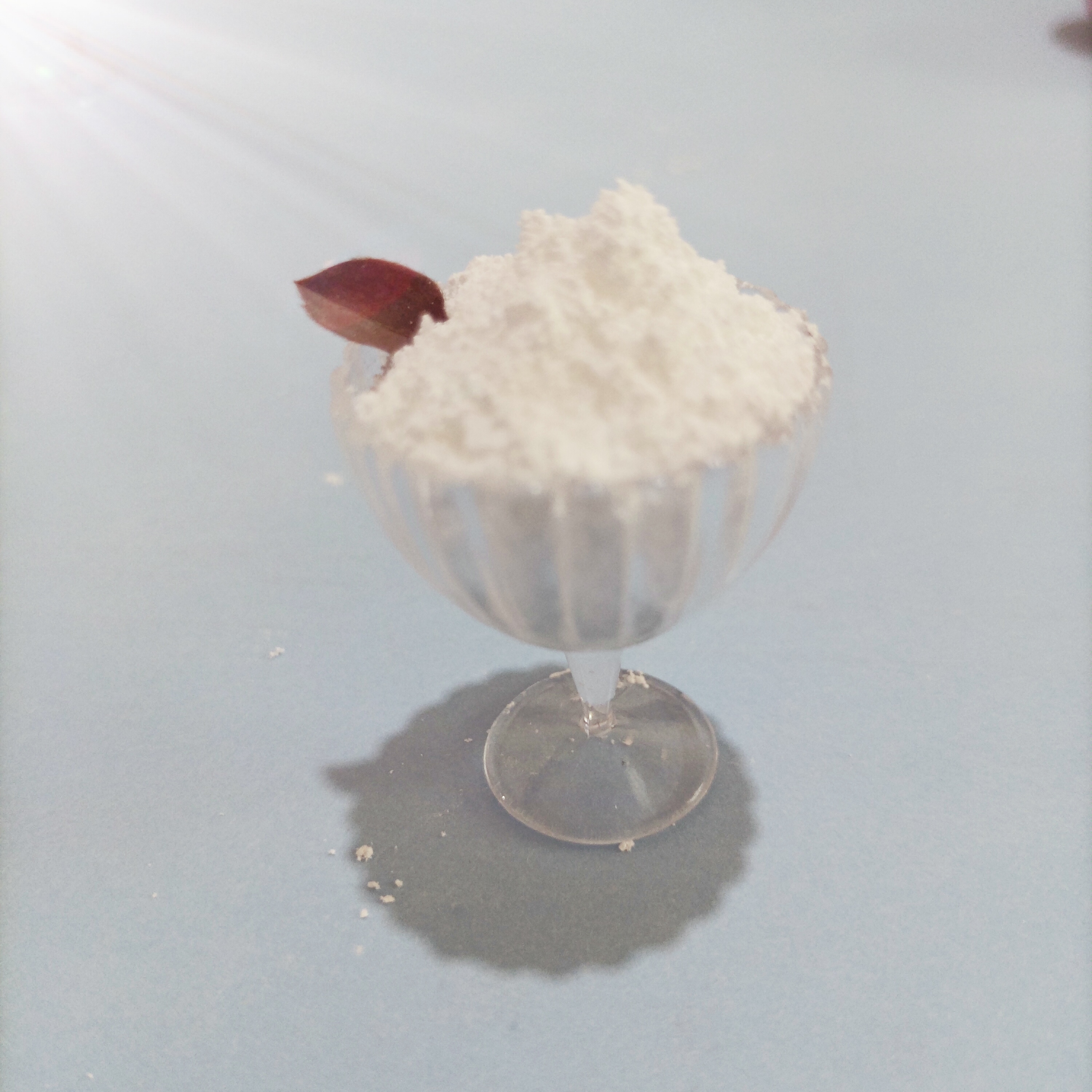

This high-purity electronic-grade spherical alumina filler is specifically designed for advanced semiconductor packaging applications (e.g., FC-BGA, Chiplet, 3D IC). Manufactured using precision spheroidization technology, it features:
High purity (≥99.5%)
Low alpha-ray emission
Excellent thermal conductivity (≥30 W/m·K)
It significantly enhances the thermal management performance and mechanical strength of packaging materials, making it ideal for high-density, high-reliability electronic packaging.
Advanced Semiconductor Packaging:
FC-BGA (Flip-Chip Ball Grid Array)
2.5D/3D IC (Silicon Interposer, TSV Filling)
Chiplet Integration
High-Thermal-Conductivity Packaging Materials:
Epoxy Molding Compound (EMC) Filler
Thermal Gel/Adhesive Reinforcement
5G/High-Frequency Electronics:
Millimeter-Wave RF Device Packaging
Power Module (IGBT/SiC) Heat Dissipation
High Purity: 99.5% purity minimizes ionic contamination, ensuring chip reliability
Low Alpha-Ray: Meets low-radiation requirements for advanced memory chips (DRAM/NAND)
Optimized Thermal Management: High thermal conductivity (≥30 W/m·K) reduces thermal resistance
Precise Particle Size Control: Adjustable 0.5-20μm for diverse packaging processes
High Sphericity: Reduces stress concentration and improves flowability/filling rate
Specialization in Electronic-Grade Materials: Complies with international standards
Customization Services: Tailored particle size and surface modification (e.g., silane coupling)
Stable Supply: 200-ton monthly capacity with high batch consistency
Technical Support: Thermal simulation and formulation optimization available
Packaging: 25kg/bag (customizable)
Shipping: Moisture-proof and shock-resistant, global logistics supported
Ideal for: Semiconductor packaging material manufacturers, EMC suppliers, 5G device makers
RFQ Note: Please specify required particle size, purity, and surface treatment
Project | Related indicators | Explain |
Purity | A1.03 | More than 99% |
Impurities | Na,0 | Can be as low as below 300ppm |
Appearance | 0-A1z03 content | Up to 90% or more |
Particle Size Distribution | D50 | Optional within 2um-50um |
Di₀0 | Can be as low as 10um or less | |
Particle size distribution | Adjustments can be made based on the typical distribution according to the requirements of the palace household, including multi-modal distribution and narrow distribution |
Project | Unit | Typical values |
Appearance | / | White pink wood |
Particle Shaped Ni | / | Spherical |
Density | kg/m³ | 3.7×103 |
Mohs Hardness | / | 6-9 |
Dielectric Constant | Er | 9 |
Dielectric Loss | lgδ | 0.0003 |
Linear expansion coefficient | 1/K | 0.7x10-6 |
Thermal conductivity | W/Kam | 30 |
