In advanced semiconductor manufacturing, thermal management and signal integrity rely heavily on the physical properties of filler materials. Standard angular silica is no longer viable for high-density packaging. The shift toward miniaturization, 5G/6G high-frequency communications, and 2.5D/3D advanced packaging demands filler materials offering maximum loading capacity without compromising resin flowability. Engineers face immense pressure to select materials resolving these exact bottlenecks. Evaluating spherical silica powder electronics requires moving beyond basic marketing claims. You must rigorously analyze particle size distribution, sphericity ratios, and ultra-high purity metrics to ensure long-term device reliability. This comprehensive guide breaks down everything you need to build a resilient material strategy.
Performance Baseline: Sphericity ratios exceeding 0.98 are mandatory to achieve the 80-90% filler loading rates required for modern Epoxy Molding Compounds (EMCs).
Purity Mandates: True electronic grade silica must restrict trace metals (Na, Fe) to sub-ppm levels and control radioactive isotopes (U, Th) to prevent soft errors in memory ICs.
Application Fit: Selection depends on balancing particle size distribution (PSD) with specific end-use cases, from high-frequency Copper Clad Laminates (CCLs) to capillary underfills.
Sourcing Risk: Consistent batch-to-batch quality and strict Certificate of Analysis (CoA) validation are more critical than baseline pricing when shortlisting suppliers.
You cannot ignore the physical limitations of angular or low-grade silica in modern manufacturing. Conventional angular particles feature jagged edges. When mixed into epoxy resins, these jagged edges interlock. This interlocking creates excessive viscosity in resin mixtures. High viscosity prevents the molding compound from flowing cleanly into tight chip cavities. It leaves dangerous voids behind. Furthermore, sharp edges cause severe abrasive wear on delicate injection molding equipment. Angular silica also fails to match the Coefficient of Thermal Expansion (CTE) of silicon chips. Silicon expands very little when heated. Base epoxy resins expand significantly. You must bridge this gap to prevent device failure.
Switching to a spherical morphology completely transforms the material dynamics. Spherical shapes minimize surface area and internal friction. They act like microscopic ball bearings inside the resin. They roll past one another seamlessly. This dynamic behavior allows for exceptionally high-density packing. You can achieve filler loading rates up to 90% by weight while maintaining flowability. This massive volume of silica drastically reduces the overall CTE of the cured composite, matching it closely to the silicon die.
Moreover, spherical materials inherently reduce internal stress. They eliminate the sharp points causing localized stress concentrations in cured epoxies. Without these stress risers, the packaging resists micro-cracking during harsh temperature cycling tests. Finally, smooth particle morphology drastically reduces the abrasion of expensive injection molding dies. You preserve your capital equipment while upgrading material performance.
Sourcing the right material demands stringent technical evaluation. You must scrutinize particle shape, size distribution, and chemical makeup. A minor deviation in these metrics disrupts the entire packaging process.
You must look for a sphericity index of at least 0.95. However, advanced IC packaging ideally requires a ratio greater than 0.98. Perfect spheres flow better and pack tighter. You also need to evaluate the D10, D50, and D90 metrics carefully. These metrics map out the distribution of particle sizes within a batch. Tight, controlled distributions allow smaller spheres to fill the gaps between larger ones. This prevents voids during resin curing. We strongly advise rejecting suppliers who cannot provide consistent laser diffraction particle size analysis for consecutive batches.
Baseline chemical purity is non-negotiable. Modern applications require a total SiO2 content ranging from 99.8% to 99.99%. The exact tier depends on your specific application. You must enforce strict limits on ionic impurities. Elements like sodium (Na+), chloride (Cl-), and potassium (K+) remain highly dangerous. They introduce unwanted electrical conductivity into insulating layers. Over time, these mobile ions trigger corrosion on the delicate metallic traces of the chip, leading to premature failure. You must secure a reliable high purity spherical powder to avoid this.
Memory devices face a unique threat from trace radiation. Trace amounts of Uranium (U) and Thorium (Th) naturally exist in standard mineral deposits. These radioactive impurities emit alpha particles as they decay. If an alpha particle strikes a memory cell, it alters the electrical charge. This flips the memory state from a 0 to a 1, causing a soft error. Electronic grade silica designated for memory packaging must demonstrate alpha emission rates strictly below 0.001 cph/cm².
Evaluation Metric |
Standard Silica Tolerance |
Advanced IC Packaging Requirement |
|---|---|---|
Sphericity Ratio |
0.85 - 0.90 |
> 0.98 |
SiO2 Purity |
99.0% - 99.5% |
99.9% - 99.99% |
Ionic Impurities (Na+, Cl-) |
< 50 ppm |
< 1 - 5 ppm |
Alpha Emission Rate |
Not strictly controlled |
< 0.001 cph/cm² |
Different segments of the semiconductor industry utilize this material for distinct structural and electrical benefits. Understanding these distinct use cases helps you tailor your specification strategy. Finding the optimal IC packaging material means aligning powder characteristics directly with the end application.
EMCs account for the bulk of global consumption. In this environment, the powder acts as the primary mechanical and thermal stabilizer. It protects the fragile semiconductor die and delicate wire bonds from physical shock, moisture, and extreme heat. Achieving a high loading capacity here directly correlates with final package reliability.
Advanced telecommunications infrastructure relies heavily on specialized substrates. High-frequency CCLs serve as the backbone for 5G routers and high-speed servers. In these environments, signal loss is unacceptable. Spherical silica provides a remarkably low dielectric constant (Dk) and a low dielectric loss tangent (Df). These traits are non-negotiable for maintaining signal integrity at gigahertz frequencies.
Advanced packaging formats, like flip-chips and Ball Grid Arrays (BGAs), leave microscopic gaps between the silicon die and the substrate. Underfill resins must secure these gaps. You need nano-to-micron scale semiconductor powder with highly tailored PSDs. The mixture must flow swiftly into these microscopic gaps via capillary action. If the particles are too large, they clog the entrance. If they are too small, they spike the resin viscosity.
Heat dissipation remains a universal challenge in high-power electronics. TIMs sit between the heat-generating chip and the heat sink. They must pull heat away aggressively. However, they must also prevent short circuits. Spherical silica functions perfectly here. It maintains strict electrical insulation alongside moderate thermal conductivity, ensuring safe and stable device operation.
The performance of electronic grade silica largely depends on its synthesis method. Manufacturers employ different physical and chemical processes to hit specific purity and shape targets. You need to understand these production realities to select the appropriate grade.

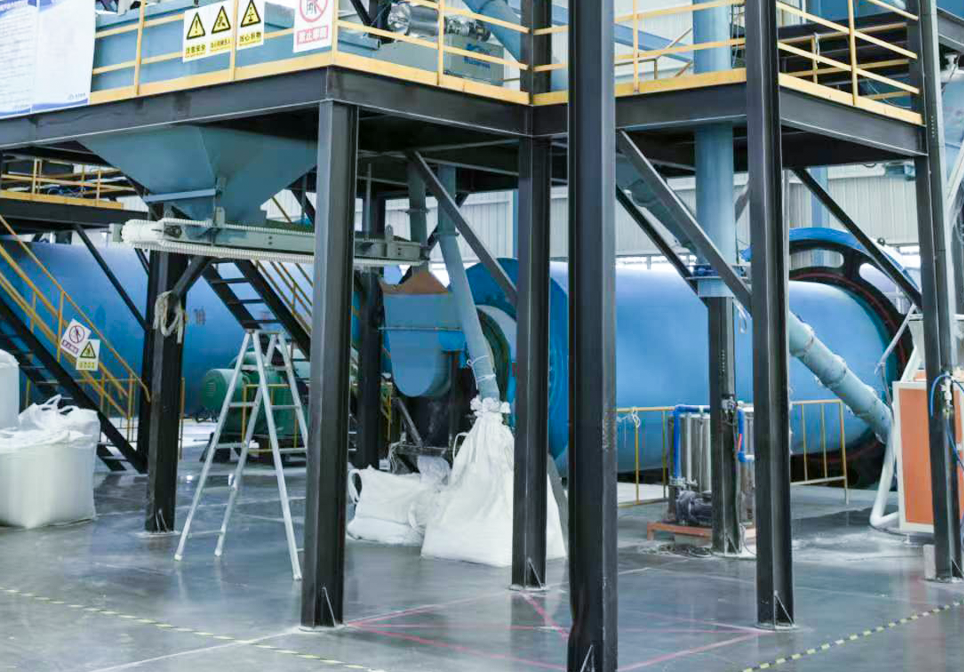

This method stands as the industry standard for high-volume, highly reliable spherical silica. The process involves taking high-purity angular quartz powder and dropping it through an extremely high-temperature plasma or oxy-hydrogen flame. The extreme heat melts the quartz instantly. Surface tension forces the molten droplet into a perfect sphere before it rapidly cools and solidifies. This technique proves highly scalable. However, its final chemical purity depends entirely on the initial purity of the raw quartz feed.
Chemical synthesis takes a molecular approach. Methods like Sol-Gel or Vapor-Phase Mass Transport (VMC) build the silica particles from the bottom up using chemical precursors. This process yields absolute ultra-high purity and incredibly precise nano-scale particle sizes. Implementation reality dictates caution, though. Sol-gel production takes much longer and requires complex chemical handling. You should only specify this synthesis grade if your application demands the absolute elimination of trace elements or requires specific nano-scale sizing that flame fusion cannot reliably achieve.
Manufacturing does not end at shaping the particle. Untreated silica naturally features hydroxyl groups on its surface. These groups readily absorb atmospheric moisture. If moisture enters a semiconductor package, it turns into steam during reflow soldering. This steam expands violently, causing a "popcorn" cracking effect. To prevent this, manufacturers apply silane coupling agents. Evaluate suppliers based on their surface treatment capabilities. Treatments using epoxysilane or aminosilane chemically modify the surface. They repel water and enhance direct bonding compatibility with your specific polymer matrices.
Securing a reliable supply chain requires meticulous vetting. Market availability fluctuates, and minor deviations in material properties can halt your entire production line. You must move beyond surface-level brochure data and conduct deep technical audits.
Do not rely solely on standard technical data sheets (TDS). These documents often show idealized batch parameters. You must require third-party lab validation for specific metrics. Demand independent certificates verifying ionic purity levels and radioactive trace element counts. Real-world performance heavily diverges from theoretical specifications if impurities slip through.
Consistency matters more than an isolated perfect batch. You need to verify how well a supplier controls their manufacturing tolerances over time. Request historical statistical process control (SPC) data across multiple production runs. This data proves their ability to maintain D50 consistency. Furthermore, you must assess the supplier's raw material redundancy. Ask them directly where they source their raw high-purity quartz. If their single mining source faces disruptions, your production line will suffer.
Define Technical Limits: Clearly map out the maximum allowable CTE for your package and the corresponding filler loading percentage required to achieve it.
Request Targeted Samples: Order 1–5 kg pilot samples of specific D50 grades. Run immediate rheology testing to observe how the powder behaves in your specific resin system under shear stress.
Audit Compliance: Thoroughly audit the supplier's ISO 9001/14001 quality management certifications. Verify their updated RoHS and REACH compliance documentation to ensure global market acceptability.
Transitioning to high purity spherical powder represents a baseline requirement for modern electronics packaging. It is no longer an optional upgrade. Traditional angular materials simply cannot meet the dense packaging and thermal management demands of today's 5G and advanced IC devices. The success of your molding compound depends entirely on securing precise particle size distribution, rigorous impurity control, and highly compatible surface treatments.
You must take immediate steps to secure your supply chain. Initiate the evaluation process by cross-referencing your current resin's viscosity limits against comprehensive supplier TDS data. Do not delay in requesting pilot samples. Run rigorous in-house rheological and thermal testing to validate flow dynamics and CTE reductions. Securing the right material today guarantees the reliability and longevity of your next-generation devices.
A: Standard fused silica is crushed and angular. Its jagged shape limits how much you can mix into a resin before it becomes too thick to flow. Spherical silica is melted into perfectly round particles. This shape acts like ball bearings, allowing for much higher filler loading, superior resin flow, and significantly lower thermal expansion in the final cured product.
A: The D50 metric dictates how well the molding compound flows into tight spaces. If the particles are too large, they can block capillary flow in microscopic underfills. If they are too small, they possess immense surface area, which exponentially increases the viscosity of the resin and prevents proper injection molding.
A: Trace radioactive elements like Uranium and Thorium naturally occur in standard mineral silica. As they decay, they emit alpha particles. If an alpha particle strikes a sensitive memory chip, it can alter the data state, causing a "soft error." Low-alpha silica undergoes severe chemical purification to prevent these emissions.
A: Yes. Manufacturers frequently treat electronic grade silica with specific silane coupling agents. These agents are tailored to bond effectively with the customer's exact epoxy, silicone, or polyimide matrix. This targeted treatment drastically improves overall mechanical strength and repels dangerous moisture absorption.
