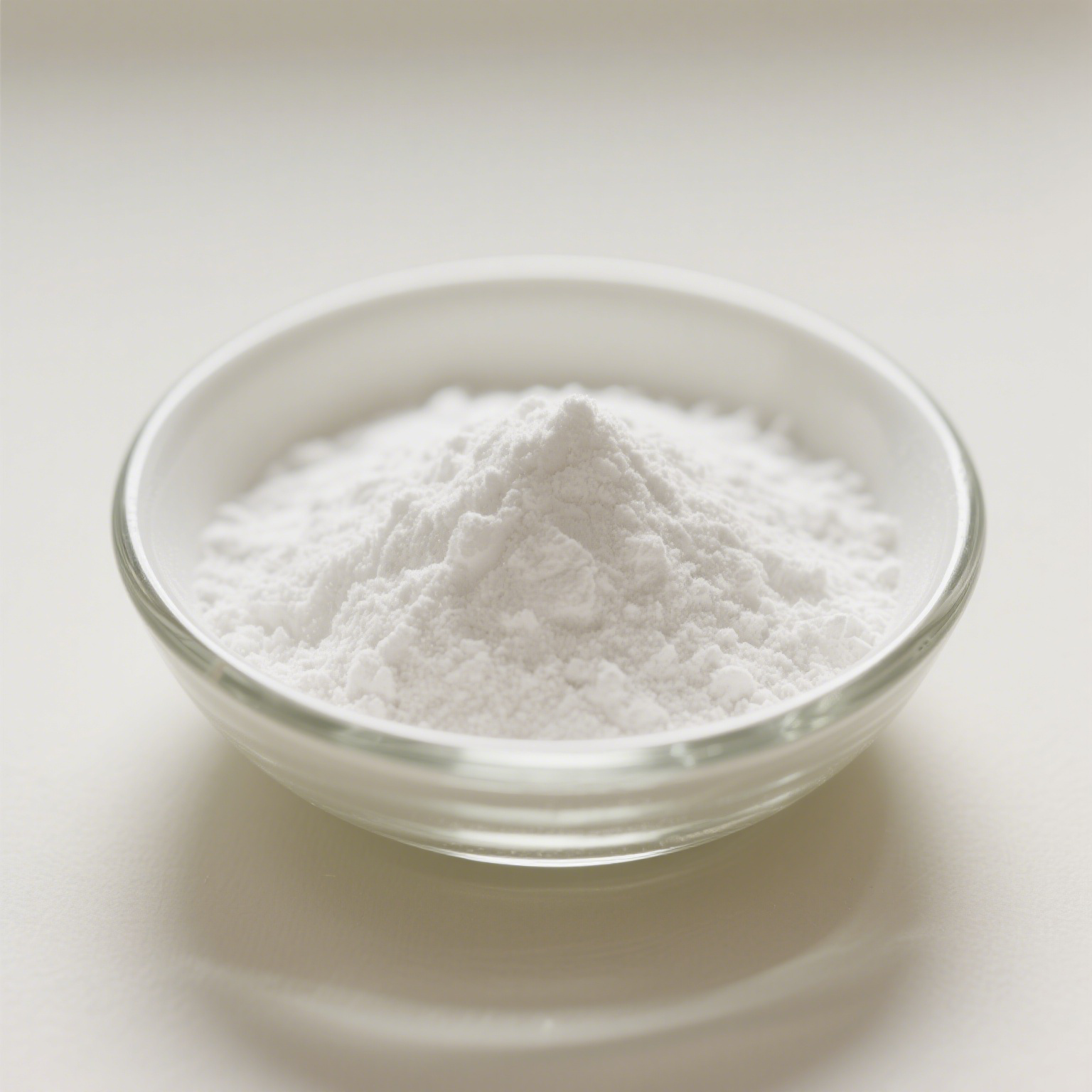

Composite silica powder in epoxy encapsulation

Electronic components face extreme thermal and mechanical stress every single day. Protecting these delicate microchips and circuits requires highly advanced encapsulation materials. Traditional resins often crack, shrink, or overheat under continuous operation. Engineers need specialized fillers to manage thermal expansion effectively. They must enhance overall durability without compromising resin flowability. This is exactly where advanced additive solutions enter the manufacturing process. This article explores how modern fillers transform resin performance across various electronic applications. We will examine critical formulation strategies in detail. We will review practical application techniques and essential quality metrics. You will discover how to select the precise materials for your specific engineering needs. This knowledge ensures optimal electronic protection and long-term reliability in the field.

Understanding the Core Filler Materials

Formulating reliable electronic protection demands precise chemistry. Pure polymer expands rapidly when heated. It shrinks significantly during subsequent cooling cycles. These rapid volume changes destroy fragile gold wire bonds inside microchips. You need a robust filler material to stabilize the polymer matrix. This introduces the critical role of composite silica powder. It fundamentally alters how the base resin behaves under thermal stress.

Manufacturers blend different silicon dioxide morphologies to achieve optimal results. They combine spherical particles and angular flakes carefully. This strategic mixture maximizes packing density inside the polymer network. High packing density reduces the total volume of expanding polymer. Consequently, the entire molded package becomes much more dimensionally stable. You will notice fewer internal voids during the heated curing process. The final product exhibits superior structural integrity.

Particle size distribution heavily dictates overall formulation performance. Formulators use laser diffraction equipment to measure these distributions accurately. They aim for a precise balance between large and small grains. Large grains provide the primary bulk structural backbone. Small grains fill the microscopic interstitial gaps between the larger particles. This optimized packing ensures excellent rheological behavior. The compound flows smoothly into microscopic mold cavities. It encapsulates delicate structures without causing wire sweep or structural damage.

Surface treatment also plays an absolutely vital role in filler technology. Bare silicon dioxide naturally repels organic polymers. Chemists apply specialized silane coupling agents to bridge this chemical gap. The silane molecules bond chemically to the inorganic filler surface. Their organic tails entangle deeply within the polymer matrix. This chemical bridge prevents moisture ingress along the particle boundaries. It significantly boosts the long-term reliability of the encapsulated device.

Key Benefits of Advanced Encapsulation Fillers

Modern microelectronics generate intense localized heat during operation. Managing this thermal load prevents catastrophic chip failure. Proper filler selection directly dictates the thermal management capabilities of the package. We rely on highly engineered epoxy encapsulation silica for several critical reasons. The integration of these materials fundamentally upgrades the baseline polymer.

Below are the primary operational advantages you gain:

• Thermal Expansion Control: Unfilled resins have a dangerously high Coefficient of Thermal Expansion. Incorporating specific fillers reduces this metric drastically. It closely matches the expansion rate of the silicon die itself.

• Enhanced Thermal Conductivity: Dense filler networks create conductive pathways through the polymer. Heat escapes the microchip much faster. It travels rapidly through the particle network toward the external heatsink.

• Superior Moisture Resistance: High filler loading reduces the permeable polymer volume. It physically blocks water molecules from penetrating the protective package. This prevents internal corrosion and subsequent electrical short circuits.

• Mechanical Rigidity: The reinforced composite withstands severe external impacts. It protects fragile internal structures during handling, shipping, and final assembly.

• Low Alpha Emission: Advanced memory chips suffer errors from alpha particle strikes. Purified fillers eliminate radioactive trace elements. This prevents soft errors in sensitive memory modules.

Engineers must balance these benefits carefully during the design phase. Pushing filler loading too high causes immediate manufacturing problems. The compound becomes dangerously viscous and difficult to pump. High viscosity leads directly to incomplete mold filling. You might trap large air bubbles near delicate wire bonds. We highly recommend conducting thorough rheological testing before finalizing any new formulation.

Formulating Solutions for Stress Relief

Rigidity is not always the ultimate goal in semiconductor packaging. Certain applications face extreme thermal cycling environments. Sudden temperature drops induce massive internal stresses across the circuit board. A highly rigid package will simply crack under these severe conditions. Engineers must introduce specific stress-relief mechanisms into the design. They often integrate flexible composite silica into the master blend.

This specialized material intentionally modifies the flexural modulus. It lowers the overall stiffness of the cured protective compound. The modified network absorbs thermal shocks safely and efficiently. It acts like a microscopic shock absorber system surrounding the chip. When the silicon die expands, the surrounding matrix flexes slightly. This microscopic flexion prevents catastrophic crack propagation through the package body.

Creating this targeted flexibility requires highly complex particle engineering. Manufacturers might coat the raw particles using advanced elastomeric compounds. Sometimes they alter the internal porosity of the individual grains. These modifications change how the particle interacts under physical load. You gain critical flexibility without sacrificing the necessary electrical insulation properties. The dielectric strength remains exceptionally high.

Consider the automotive industry as a perfect prime example. Engine control units endure freezing winter mornings and boiling engine temperatures. Their protective coatings must expand and contract continuously over years of service. Utilizing flexible fillers ensures the protective casing survives these relentless thermal cycles. We see massive improvements in the overall lifespan of crucial automotive sensors.

Overcoming Warpage in Thin Semiconductors

Modern devices demand incredibly thin packaging profiles to save space. Smartphones and wearable devices require ultra-thin memory and processor chips. These thin profiles introduce a severe manufacturing challenge for assembly lines. The semiconductor packages tend to warp heavily during the rapid cooling phase. Warped chips fail downstream assembly processes entirely. They cannot attach flatly to main printed circuit boards.

Addressing warpage requires highly nuanced material science and precise formulation. You cannot simply increase the filler density indefinitely to stiffen the package. We employ soft composite silica powder to solve this specific structural issue. This innovative material drastically reduces the internal shrinkage stress. It mitigates the bi-metallic strip effect causing the physical warpage.

The soft particles actually deform microscopically during the cross-linking curing cycle. They absorb the volumetric shrinkage of the surrounding polymer network. This physical deformation neutralizes internal tension before it bends the package. You achieve remarkably flat profiles even in large-area array packages. The co-planarity of the final component improves significantly.

Engineers combine this formulation approach alongside highly specialized curing profiles. A slow, stepped curing process allows internal stresses to relax naturally. We also monitor the Glass Transition Temperature closely during development. You want the transition point high enough to survive intense reflow soldering. However, you need the material flexible enough during the initial manufacturing cool down.

Performance Testing and Quality Standards

Validating these complex formulations requires rigorous analytical laboratory testing. You cannot rely on visual inspections alone to guarantee product reliability. Industry standards mandate strict quality control protocols across the entire supply chain. We use standardized metrics to ensure flawless batch-to-batch consistency. These tests confirm the physical and chemical properties of the blend.

Here are the critical testing methodologies we follow daily:

1. Thermomechanical Analysis: This test measures minute dimensional changes over a broad temperature range. We use it to calculate the exact expansion rate below and above the transition point.

2. Differential Scanning Calorimetry: This thermal technique identifies the precise Glass Transition Temperature. It also verifies the mathematical completeness of the chemical curing reaction.

3. Laser Flash Analysis: We use this advanced tool to measure thermal diffusivity accurately. This specific data helps calculate the overall thermal conductivity of the final molded part.

4. Spiral Flow Testing: This practical factory test evaluates baseline rheology. We inject the heated compound into a standard spiral mold. The final flow distance dictates the material's everyday processability.

The matrix below summarizes common targets for semiconductor-grade protective compounds:

Monitoring these precise metrics prevents disastrous mass manufacturing failures. Uncontrolled expansion leads directly to cracked internal silicon dies. Restricted spiral flow causes incomplete electronic encapsulation and exposed wires. You must dial in these parameters perfectly for every unique hardware application.

Securing Reliable Supply Chains

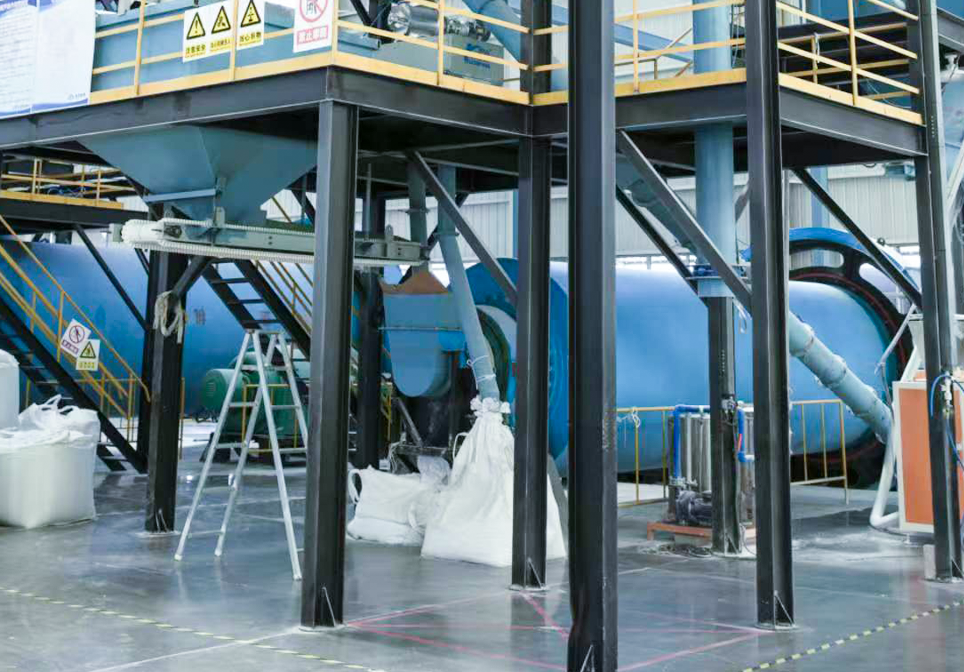

Developing the perfect formula in the laboratory is only the first step. Scaling production up introduces an entirely new set of logistical challenges. Consistency becomes the single most critical factor in mass manufacturing environments. A slight, unnoticed variation in particle size distribution destroys your established rheology. You need a highly dependable, technically capable manufacturing partner.

Many successful hardware companies opt for robust OEM composite silica partnerships. An experienced OEM partner customizes the exact filler blend to your stringent specifications. They control the raw material sourcing strictly from the original mines. They monitor the crushing, classification, and chemical surface treatment processes continuously. This oversight prevents lot-to-lot performance drifting.

This strategic partnership offers distinct and measurable engineering advantages. You gain immediate access to advanced analytical testing laboratories. The supplier provides highly detailed Certificates of Analysis for every single batch shipped. They can adjust surface treatments quickly if your base resin chemistry changes. We highly recommend establishing incredibly clear technical specifications early in the relationship. Define the acceptable numerical tolerances for particle size and moisture content explicitly.

Do not overlook proper packaging and transportation logistics. Powdered additives absorb ambient atmospheric moisture surprisingly quickly. The supplier must use specialized moisture-barrier bagging systems for all shipments. They should ship the material in securely vacuum-sealed, climate-controlled containers. Even tiny amounts of absorbed water cause massive internal voids during the heated molding process.

Practical Application Guidelines

Transitioning from the pristine laboratory to the chaotic production floor requires careful planning. We often see mathematically perfect formulas fail due to extremely poor handling practices. Machine operators must follow strict material preparation guidelines every shift. This discipline ensures the material performs exactly as designed.

First, always pre-warm the dry filler material thoroughly. Cold powder introduces unwanted condensation into the primary mixing vessel. Pre-warming effectively drives off any residual surface moisture before blending begins. It also prevents the fine powder from clumping together during the initial liquid wetting phase.

Second, utilize heavy-duty high-shear vacuum mixing equipment. Standard open-air propeller blades trap massive amounts of microscopic air. A planetary vacuum mixer pulls trapped air out actively while blending the viscous components. This ensures a perfectly homogeneous, completely bubble-free protective compound. You cannot rely on a downstream vacuum degassing step alone to fix bad mixing. The initial master batch mix must be as clean as possible.

Third, monitor the workable pot life strictly and relentlessly. The mixed compound begins reacting and cross-linking immediately upon blending. Viscosity climbs steadily and predictably over time. You must complete the dispensing or transfer molding process within the specified time window. Discard any material exceeding its rated safe pot life. Trying to force highly viscous, partially cured material into a tight mold always causes severe defects.

Conclusion

Selecting the correct protective filler directly dictates the final success of your encapsulation project. The technology industry demands ever-increasing operational performance from modern electronic devices. You must formulate highly protective compounds capable of surviving incredibly harsh external environments. Managing extreme thermal expansion remains the absolute top priority for packaging engineers globally.

Here are the critical next steps for your ongoing formulation process:

• Evaluate your maximum expected operating temperature to determine necessary expansion targets.

• Select a specialized particle size distribution tailored specifically to your internal mold clearances.

• Incorporate advanced stress-relieving additives if your final application faces severe thermal shocks.

• Establish highly stringent incoming quality control metrics alongside your trusted material suppliers.

• Validate all fluid flow characteristics thoroughly before scaling up to automated mass production.

Following these systematic steps ensures robust, highly reliable, and deeply protective electronic packaging. You will significantly reduce field failure rates and substantially improve overall product longevity.

FAQ

Q: What causes voids in epoxy encapsulation?

A: Voids typically result from trapped air during the initial mechanical mixing phase. They also form rapidly when absorbed ambient moisture vaporizes during the heated curing cycle. Using planetary vacuum mixing and thoroughly pre-drying the filler powder eliminates most voiding issues. Poor material flowability can also trap air pockets inside highly complex mold cavities.

Q: How does particle shape affect resin flow?

A: Spherical particles act exactly like microscopic ball bearings inside the fluid. They drastically reduce internal friction and dramatically improve the overall flowability of the resin. Angular flakes increase system viscosity very quickly. Manufacturers usually blend both physical shapes to balance fluid flowability against necessary structural reinforcement.

Q: Can I use standard silica for high-power electronics?

A: Standard industrial silica lacks sufficient thermal conductivity for modern high-power devices. You need specialized composite blends or advanced alumina-based fillers to manage extreme operational heat. High-power chips require extremely rapid heat dissipation to prevent dangerous thermal runaway and subsequent catastrophic component failure.

Q: Why is surface treatment necessary for fillers?

A: Untreated inorganic silica naturally repels the organic polymer matrix. This chemical mismatch creates microscopic gaps where damaging moisture can easily accumulate over time. Surface treatments, like specific silane coupling agents, create extremely strong chemical bonds connecting the particle directly to the resin. This prevents moisture ingress.
