Advanced ceramic manufacturing demands rigorous control over material behavior at every stage. We see a significant technical transition away from angular or crushed quartz today. High-frequency electronics and advanced molding processes require tighter tolerances than ever before. Engineers increasingly favor precisely engineered spherical particles to solve complex formulation bottlenecks. This shift involves a deliberate engineering tradeoff. You face higher upfront material prices, but you gain critical improvements in packing density, rheology, and thermal stability.
These physical advantages prevent micro-cracking and viscosity failures during production. They allow manufacturers to push the limits of material performance. This article provides materials engineers and procurement teams with a practical evaluation framework. We will explore how to interrogate Technical Data Sheets (TDS) effectively. You will learn to select application-specific formulations that guarantee reliability across your production line.
By understanding these core dimensions, you can match the right morphological profile to your exact manufacturing process. This careful alignment ultimately secures both structural integrity and electrical consistency in the final ceramic component.
Key Takeaways
- Morphology drives performance: Sphericity rates (>98%) directly resolve viscosity bottlenecks in high-load ceramic slurries and custom molding.
- Purity dictates electrical reliability: Trace metal limits in high-purity spherical silica are non-negotiable for low temperature co-fired ceramics (LTCC) and semiconductor packaging.
- Consistency over peak specs: Batch-to-batch particle size distribution (PSD) consistency is a stronger indicator of supplier reliability than isolated peak purity claims.
- Application matching: Manufacturing origins (flame fusion vs. precipitation) dictate the material's structural suitability for end-uses like 3D printing or high-frequency electronics.
Defining the Engineering Problem: Why Ceramics Require Spherical Morphology
Let us examine the fundamental limitations of angular fillers. Irregular particle shapes cause high internal friction inside ceramic slurries. They lock together randomly during the mixing phase. This mechanical interlocking creates uneven thermal expansion paths within the cured matrix. It also accelerates mechanical wear on your processing equipment. Planetary mixers and three-roll mills degrade much faster when processing crushed quartz. Furthermore, you cannot easily predict how angular particles will pack together. This unpredictability limits the maximum volume of filler you can successfully integrate into the resin.
Physics strongly favors the spherical form. A spherical shape offers the absolute minimum surface area for any given volume. This simple geometric fact unlocks a massive advantage in materials engineering. You achieve maximum packing density. You can fit significantly more particles into the same spatial volume. Furthermore, spherical particles roll past each other easily. This ball-bearing effect dramatically reduces the viscosity of highly loaded resins. Engineers rely on this physical trait to maintain flowability in complex molds.
Success in ceramic matrices relies on fulfilling several critical criteria. We must lower the coefficient of thermal expansion (CTE) to match surrounding materials. We need to reduce dielectric loss to ensure signal integrity in electronic applications. Most importantly, we want to enable higher volume fractions. Choosing the right spherical silica powder achieves these exact goals without compromising slurry fluidity. This balance transforms difficult formulations into highly stable, production-ready materials.
Evaluating Technical Data Sheets (TDS): Core Dimensions for Ceramic Integration
Evaluating a Technical Data Sheet requires looking far beyond basic marketing claims. Engineers must independently analyze three core dimensions to ensure successful integration.
First, we carefully examine the Particle Size Distribution (PSD) alongside the sphericity ratio. You will typically see D10, D50, and D90 metrics listed on any standard TDS. A strict, narrow distribution often outperforms a broad one in advanced applications. Narrow distributions actively prevent micro-voids from forming during the crucial sintering phase. High sphericity ratios ensure predictable, uniform shrinkage across the entire part. You should demand a sphericity ratio exceeding 98% for high-performance molds.
Chemical purity serves as the next critical evaluation factor. Trace element control completely determines the electrical performance of your final product. You must accurately assess if your process strictly requires high-purity spherical silica. This premium material often features SiO2 levels ranging from 99.9% up to 99.999%. Uranium and Thorium impurities cause dangerous alpha particle emissions. These emissions trigger soft errors in sensitive semiconductor memory chips. Alkali metals like sodium, potassium, and iron degrade insulation resistance heavily. They also exponentially increase dielectric loss at higher operating frequencies.
Secondary metrics matter significantly for specialized manufacturing. Specific Surface Area (BET) and whiteness heavily influence certain niche applications. High BET values indicate a highly porous surface. Such particles can absorb too much expensive binder. This excessive absorption alters the curing rates in photopolymer-based ceramic processes. High whiteness remains absolutely crucial for the aesthetic quality of dental implants or visible structural ceramics.
The evaluation chart below outlines standard metrics to consider during your technical review.
| Metric | Typical Target Range | Primary Impact on Ceramic Matrix |
| Sphericity Ratio | > 98% | Improves slurry rheology and maximizes packing density. |
| SiO2 Purity | 99.9% - 99.999% | Reduces dielectric loss and prevents alpha emissions. |
| Specific Surface Area (BET) | 0.5 - 5.0 m²/g | Controls binder absorption demand and regulates curing speed. |
| Particle Size (D50) | 0.5 - 50 µm | Prevents internal micro-voids during the high-temperature sintering phase. |
Classification by Manufacturing Process and End-Use Mapping

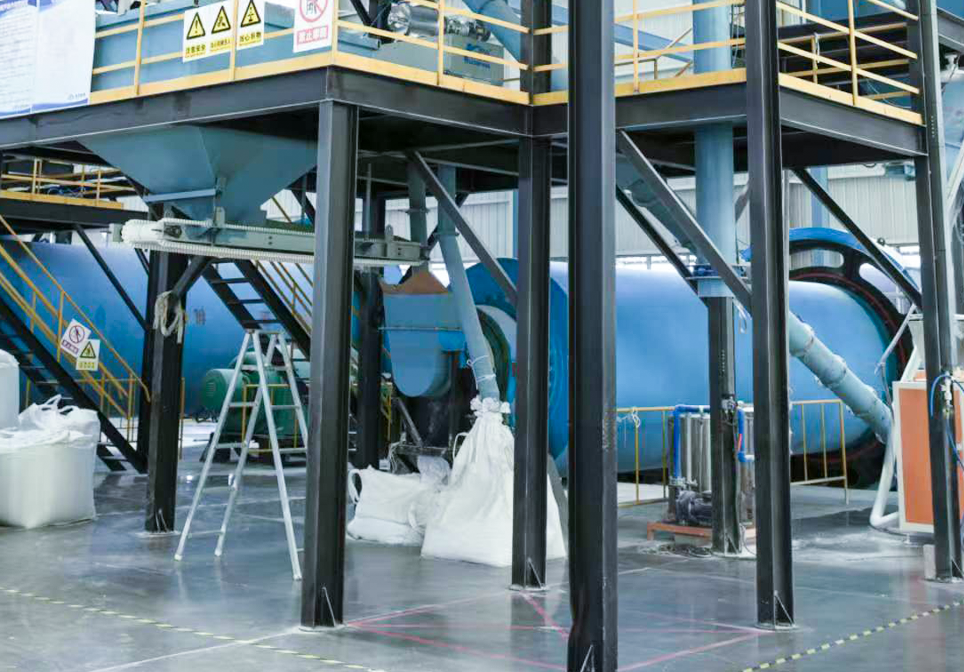

Manufacturing origins ultimately dictate how these microscopic particles behave in different chemical environments. We primarily see two dominant synthesis routes in the industry. Flame fusion involves melting high-purity quartz powder through an extreme high-temperature flame. This intense thermal process yields excellent structural stability. It produces highly dense particles lacking internal voids. Sol-gel or precipitation processes build particles chemically from liquid precursors. These precipitated particles often retain different internal porosity profiles. Flame fusion generally wins out for ultra-dense, low-expansion requirements.
Electronic ceramics demand incredibly strict material specifications. If you manufacture modern communication substrates, you need highly specialized functional fillers. Integrating high-grade LTCC spherical silica becomes an absolute necessity here. Low temperature co-fired ceramics require an ultra-low dielectric constant (Dk). They also depend on a minimal dissipation factor (Df). These stable electrical properties are vital for preventing signal attenuation in 5G and future 6G high-frequency transmission systems.
Additive manufacturing represents another rapidly growing end-use segment. SLA and DLP ceramic resins require completely unique rheological profiles to print successfully. Utilizing a dedicated spherical silica for 3D printing solves many common print failures. It ensures excellent flowability inside the printer vat between layer exposures. It also offers highly predictable light scattering behavior. This optical stability matches the refractive index of the photopolymer. Furthermore, the uniform shape prevents the heavy ceramic particles from prematurely settling out of the liquid suspension.
Implementation Risks: Processing Challenges and Quality Control
Transitioning to a spherical filler introduces new processing challenges on the factory floor. You must proactively manage these implementation risks to avoid costly batch failures.
Dispersion and agglomeration remain top concerns for production managers. Nano-spheres and micro-spheres naturally agglomerate inside organic binders. Their inherently high surface energy pulls them together into tight clumps. You must use surface-treated materials to break this attraction. Silane coupling agents modify the silica surface chemically. This targeted treatment dramatically improves compatibility between the inorganic filler and the organic polymer matrix. Without proper surface treatment, you will experience severe viscosity spikes.
Sintering shrinkage mismatch poses a severe engineering risk during the firing cycle. The silica filler and the surrounding ceramic matrix often expand and contract at completely different rates. This CTE mismatch can easily lead to microscopic cracking throughout the component. These stress cracks usually form during the rapid cooling phase. You must carefully match your specific filler volume fraction to the baseline matrix properties to prevent this.
Industrial hygiene and regulatory compliance form the final operational barrier. Airborne respirable dust presents severe safety hazards to your workforce. Factories must install proper ventilation and pneumatic conveying protocols to prevent inhalation. Furthermore, global electronics supply chains require strict, traceable documentation. Your sourced materials must comply with standard RoHS and REACH frameworks before integration.
Implement the following core practices to mitigate these processing failures immediately:
- Apply appropriate silane coupling agents to reduce surface agglomeration within the resin bed.
- Conduct routine thermal mechanical analysis (TMA) to map and predict the exact CTE mismatch.
- Implement fully enclosed pneumatic conveying systems to eliminate airborne silica dust exposure for workers.
- Run controlled rheology sweeps on pilot batches to verify the stability of the suspension over time.
Sourcing Strategy: Auditing an OEM Spherical Silica Supplier
Selecting the right manufacturing partner ensures long-term production stability. Off-the-shelf PSDs rarely satisfy custom ceramic formulations. A robust supplier must clearly demonstrate custom fractionation capabilities. They need the technical ability to narrowly cut particle sizes using advanced air classifiers. This mechanical precision prevents packing failures in your specific matrix. If a supplier cannot customize the D50 cut, they cannot scale with your engineering needs.
Scalability and consistency often conflict in powder manufacturing. It is relatively easy to produce a perfect one-kilogram lab sample. However, maintaining that exact PSD over a multi-ton commercial order requires serious infrastructure. You must comprehensively evaluate the supplier's quality management system (QMS). Look for statistical process control data across multiple historical batches. Consistency ultimately outranks isolated peak specifications. A steady, predictable powder performs much better than one that fluctuates between production runs.
Partnering directly with the primary manufacturer simplifies everything. A qualified OEM spherical silica partner provides immense long-term value. You should audit their production facilities using a strict engineering checklist before signing annual contracts.
Always verify these critical elements during your supplier audit:
- Verify their in-house testing lab capabilities for accurately measuring PSD, sphericity, and trace element purity.
- Demand complete transparency in their raw quartz material sourcing chain to avoid unexpected contamination.
- Evaluate their thermal processing equipment to ensure they utilize genuine high-temperature flame fusion.
- Ensure they offer localized technical support for rapid troubleshooting during your initial formulation trials.
Conclusion
Specifying these advanced functional fillers requires an exercise in precise matrix matching. It is not simply about blindly sourcing the highest purity available on the open market. You must actively align the particle morphology, surface chemistry, and size distribution to your exact application needs. The wrong PSD will ruin an otherwise perfect formulation. The wrong surface treatment will cause rapid settling in your resin vat.
We strongly advise engineering teams to prioritize lab-scale slurry dispersion testing. Execute these small trials before committing to bulk procurement based solely on printed TDS figures. Take the necessary time to audit your supply chain carefully. Verify PSD and sphericity consistency across multiple commercial batches. Doing so successfully ensures both structural integrity and electrical reliability in your final advanced ceramic products.
FAQ
Q: What is the optimal sphericity percentage for LTCC applications?
A: The target sphericity should strictly exceed 98%. This high percentage ensures predictable dielectric performance across the substrate. It also minimizes variance in the coefficient of thermal expansion (CTE) during the co-firing process. High sphericity directly enables higher filler loading without disrupting the slurry flow during tape casting.
Q: How does spherical fused silica differ from spherical precipitated silica?
A: Spherical fused silica is produced via a high-temperature flame fusion process. It offers extremely low thermal expansion, higher bulk density, and almost no internal pores. Precipitated silica is synthesized chemically. It typically features higher internal porosity and a higher specific surface area, making it less ideal for high-density electronic substrates.
Q: Can spherical silica powder be used in structural alumina or zirconia ceramics?
A: Yes, but it functions differently here. It acts as a secondary functional filler rather than the primary structural matrix material. Engineers add it specifically to improve the thermal shock resistance of the part. It helps meticulously adjust the overall thermal expansion behavior of the alumina or zirconia composite structure.
